Specifications
Specifications| Networking Ports | ● 16*10/100Mbps PoE RJ45 ports（port1~port16） ● 2*10/100/1000Mbps RJ45 ports（port17~port18） ● 1*1000M SFP port |
| Networking Standards | ● IEEE 802.3i、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、 IEEE 802.3at、IEEE 802.3bt |
| Performance | ● Bandwith ：7.2Gbps ● Packets Forwarding Rate：5.4Mpps ● MAC table size：8K ● Forwarding type：Storatge and Forwarding |
| LED Indicator | ● Power Indicator ● LINK/ACT Indicator ● PoE Indicator |
| PoE | ● 1/2( +) ，3/6(-) |
| Power | ● Port 15-16 max power：60W ● PoE budget：150W |
| Dimension | ● W*D*H：210mm*152mm*40mm |

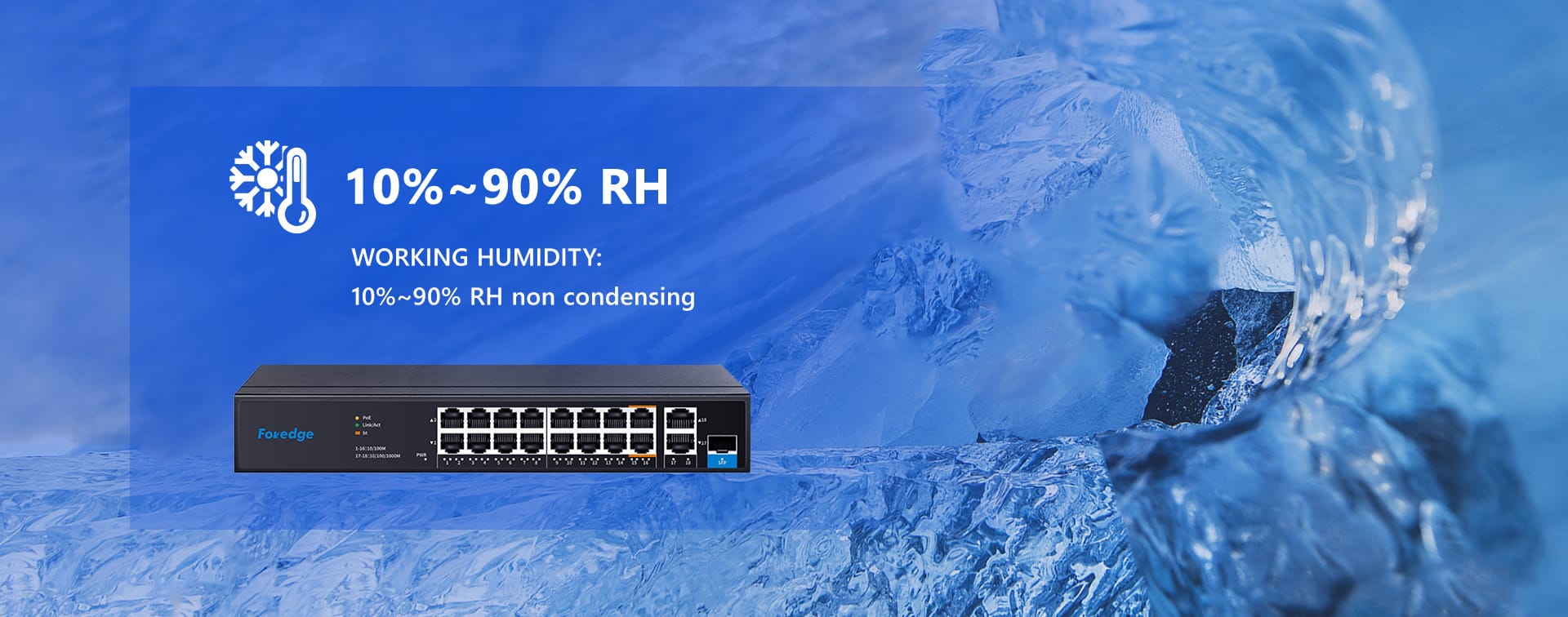

| Evironment | ● Working Temperature：0° ~40°C ● Storage Temperature：-40℃〜70℃ ● Working Humidity：10%~ 90% RH nun-condensing ● Storage Humidity：5%~ 90% RH nun-condensing |
| Safty Compliance | ● CE/ROHS/FCC/CCC |
