Specifications
Specifications| Hardware Specifications: | |

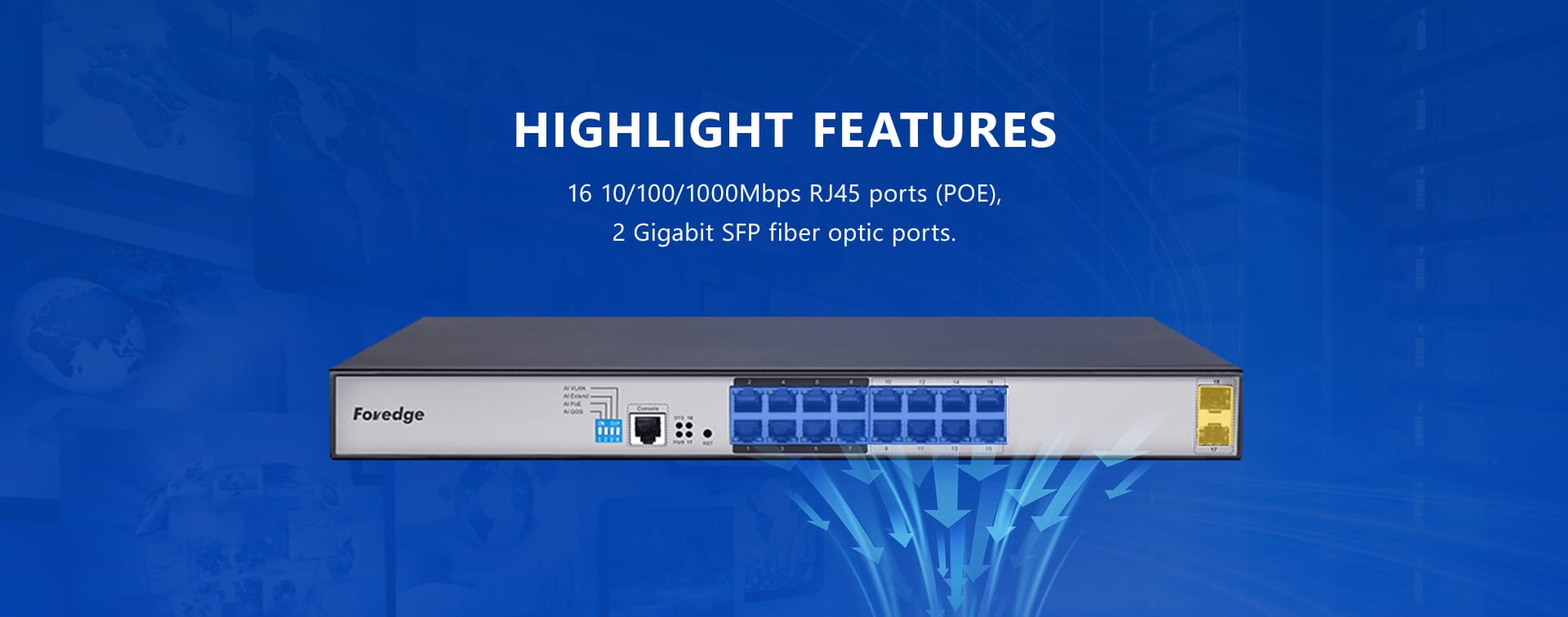

| Networking Interface | ● 16*10/100/1000Mbps RJ45 ports（POE） |
| ● 2*SFP ports | |
| ● 1*Console port | |
| Network Protocol | ● IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab, |
| ● IEEE 802.3z,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1p, | |
| ● IEEE 802.1q,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w, | |
| ●IEEE 802.3af,IEEE 802.3at | |
| Performance | ● Bandwith：36Gbps |
| ● Packet forwarding rate：26.8Mpps | |
| ● MAC table size：8K | |
| ● Forwarding type：Storage and forwarding | |
| LED Indicator | ● 18*Link/Act indicator |
| ● 16*PoE indicator | |
| ● 1*Power indicator | |
| ● 1*SYS indicator | |
| POE Pin | ● 1/2（+），3/6 （-） |
| Power Supplier | ● Power input：AC 100-240V/50-60Hz |
| ● Single port MAX. power：30W | |
| ● PoE budget：150W | |
| Dimension | ● W*D*H：440mm×180mm×44mm |
| Environment | ● Operating temperature：0°C~40°C |
| ● Storage temperature：-40℃〜70℃ | |
| ● Operating humidity：10%~ 90% RH non condensing | |
| ● Storatge humidity：5%〜90% RH non condensing | |
| Safte Regulation | ● CE/ROHS/FCC |
| VLAN | Support 4K VLANs |
| Support 802.1Q VLAN,MAC VLAN ,IP VLAN | |
| DHCP | Support DHCP Snooping |
| MAC Address | Follow IEEE 802.1d standard |
| table | Support MAC address automatic learning and aging Support static, dynamic, filtering address table |
| Safety features | Password protection |
| Support to restrict user access based on port number, IP address, MAC address | |
| Support HTTPS,SSL V3,TLS V1,SSH V1/V2 | |
| Support IP-MAC-PORT ternary binding | |
| Support ARP protection, IP source protection, DoS protection Support DHCP Snooping, DHCP attack protection | |
| Support 802.1X authentication, AAA | |
| Support port security and port isolation | |
| Support CPU protection function | |
| PoE Manage | Support PoE power limit |
| Support PoE chip status check | |
| Support setting PoE port priority | |
| Support setting PoE power supply time period | |
| Support intelligent power supply | |
| ACL | Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, flow rate limiting, QoS remarking |
| QoS | Supports 8 port queues |
| Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, WFQ priority scheduling algorithm | |
| Spanning tree | Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols |
| Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering | |
| Support optical port 50ms switching | |
| Multicast | Support IGMP v1/v2/v3 Snooping |
| Support MLD v1/v2 Snooping | |
| Fast leave mechanism and querier supporting Layer 2 multicast Support Layer 2 IPv4 static multicast | |
| Support Layer 2 IPv6 static multicast | |
| Storm suppression | Support multicast suppression |
| Support broadcast suppression | |
| Support unknown unicast suppression | |
| Link aggregation | Support static aggregation |
| Support dynamic aggregation | |
| Support based on IP, MAC, mixed load balancing mode | |
| A maximum of 32 aggregation groups are supported | |
| IPv6 | Support IPv6 Ping,IPv6 Tracert,IPv6 Telnet |
| Support IPv6 SSH ,IPv6 SSL | |
| Management and maintenance | Support WEB network management（ HTTP,HTTPS,SSL V3 ） Support CLI（ Telnet,SSH V1/V2,Local Console port） |
| Support SNMP V1/V2/V3 | |
| Support RMON V1/V2 | |
| Support LLDP device discovery | |
| Support NTP time synchronization | |
| Support DNS Client | |
| Support CPU monitoring, memory monitoring | |
| Support system log, graded warning | |
| Support Ping, Tracert detection, cable detection | |
| Support Apollo cloud platform one-stop management and maintenance | |
